| 판매사 |
(주)비투비조인코리아 |
| 모델명 |

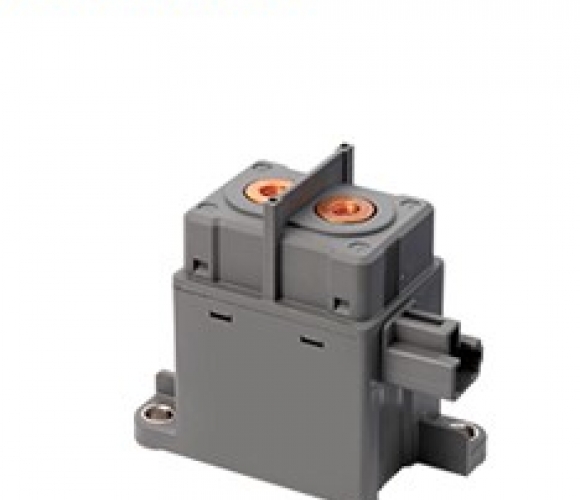

GER-M100ST |
| 제품코드 |
GER-M100ST |
| Information |

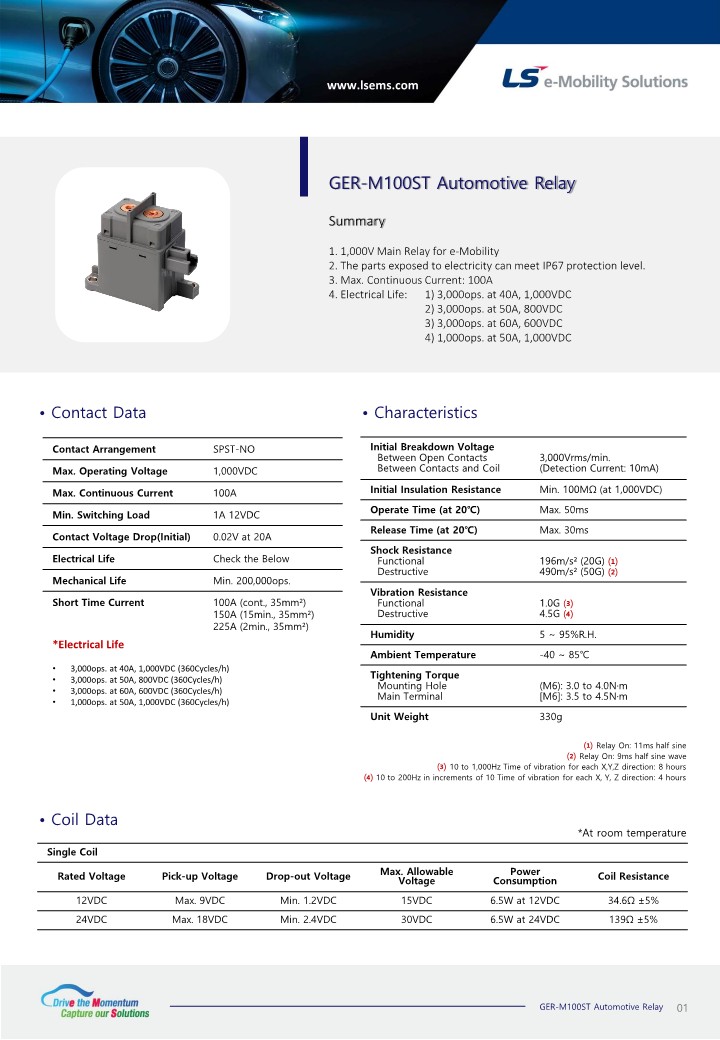

1,000V Main Relay for e-Mobility |
| Information |
The parts exposed to electricity can meet IP67 |
| Information |
Max. Continuous Current: 100A |
| Electrical Life |
1) 3,000ops. at 40A, 1,000VDC |
| Electrical Life |
2) 3,000ops. at 50A, 800VDC |
| Electrical Life |
3) 3,000ops. at 60A, 600VDC |
| Electrical Life |
4) 1,000ops. at 50A, 1,000VDC |
| 판매유형 |
견적문의 혹은 상담판매 |
